Precor

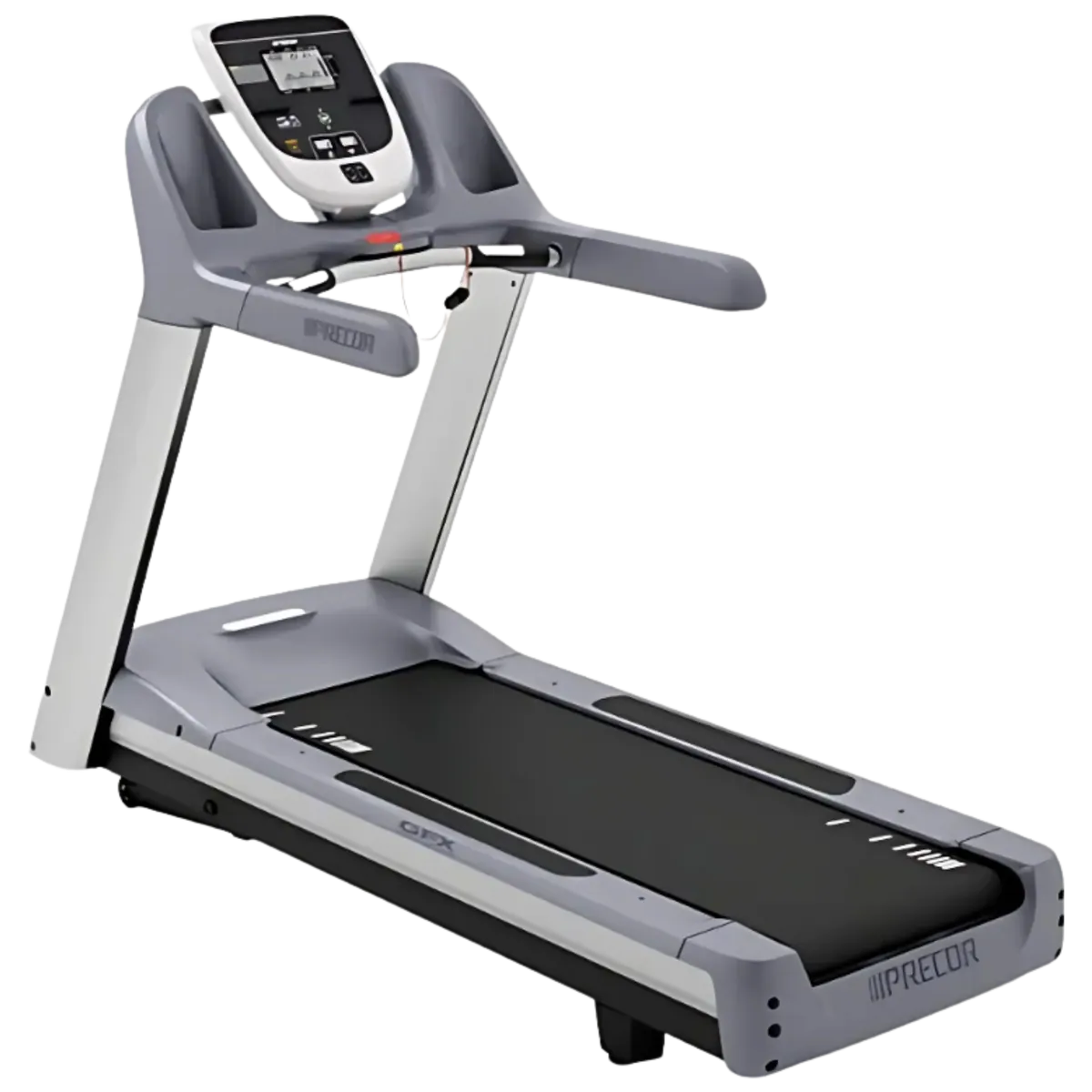

Precor TRM 823 Treadmill w/ P20 Console (Remanufactured)

SKU: PrecorTRM823p20
  • ConditionRemanufacturedWhat is remanufactured?
  • GradeCommercial
  • Warranty1 Year Parts & On-Site Labor w/Ext. Warranty Options · details
  • ShipsFreight delivery with liftgate — installation options at checkout
  • Processing timeShips from our warehouse in 3-5 weeks + transit time
  • DeliveryNationwide freight delivery

$4,399

Financing from $122/mo— learn more

Built to order

Order Now
  • Delivery & installation
  • Financing available
  • Warranty included
  • Expert support

Call +1 (800) 555-0199 for volume pricing.

Brand
Precor
Condition
Remanufactured
Grade
Commercial
SKU
PrecorTRM823p20
Weight
225 lb

Electrical Configuration — U.S./Canada Orders

  • Configuration sold on this PDP: 120V AC.
  • Facility power: Dedicated 120V, 20A circuit.
  • Required wall receptacle: NEMA 5-20R.
  • Voltage selection: None at checkout. A 220–240V configuration is not included or interchangeable with this 120V SKU and requires a separately approved exact model/configuration before purchase.
  • Power cord: The assigned remanufactured unit’s exact plug, equipment-side connector, quantity, and staged status are verified before shipment and recorded in the order.

Do not connect a 120V unit to a 220–240V receptacle. The assigned unit’s rating plate and order documents control.

Cybex 525T Treadmill, combines advanced engineering and reliable performance you expect from Cybex in a treadmill designed for hotels, corporate gyms, and multi-family residential fitness centers. The High style meets a low-impact workout in the Precor TRM 823 treadmill. As with all Precor treadmills, it comes standard with Integrated Footplant Technology (IFT) and Ground Effects Impact Control (GFX). With the Precor TRM 823, users are ensured a dynamic and rewarding workout. Our commercial and premium home treadmills also include our Ground Effects Impact Control System. This technology one-ups Mother Nature and other treadmills by absorbing shock only at the point of impact and providing maximum stability at push-off. Rather than flex like a bow, our premium treadmills employ a collection of individual shock absorbers to provide variable absorption, while adding important lateral stability to prevent injury. The rear of the deck, meanwhile, maintains a solid surface that keeps your foot from sinking and makes it easy to push off, maintaining speed, reducing fatigue, and also preventing injury.
Our Integrated Footplant Technology makes the treadmill move the way you do by changing the belt speed to match that of your foot. As your foot slows and accelerates during impact and push-off, our technology senses it and adjusts the belt speed - up to 710 times a minute. Unique to Precor, the adjustments ensure you feel a naturally rhythmic stride instead of the shoe and joint discomfort that come with the drag and pull of other treadmills. Don't be fooled by the "bigger is always better" rhetoric associated with treadmill horsepower ratings. Precor treadmill motors are matched with the treadmill's other components to provide the ideal treadmill experience. Running cool and quiet, Precor treadmill motors provide substantial power and torque at all speeds. Equipped with a constant-speed cooling fan, our motors perform efficiently at slower speeds, which also increase overall motor life and reliability.

Exercise variety with pre-set workouts. The most successful exercise program is one that you stick with over time, and Precor treadmills help you in that endeavor by offering programs that are challenging and motivating. Ease of use. Precor treadmills are designed with easy-to-read, navigable consoles that make sense. With the QuickStart feature, you'll be on your treadmill and exercising with the touch of a button. While Precor treadmills require basic care, maintaining the running deck is easy because it requires no maintenance, it's self-lubricating. And on select home models, the deck is reversible, its life is doubled.

Features

  • Stride Support: Integrated Footplant Technology
  • Ground Effects Technology: Yes. Ground Effects impact control system helps decrease impact on joints and reduces lateral motion.
  • Integrated Footplant Technology: Integrated Footplant Technology makes each step feel more natural, balanced and in-control.
  • Deck and Belt: Rear deck hinges and front cushioning create a laterally stable platform to reduce shock to runner and provide a firm push off. Deck and belt require no external lubrication. Deck is a one-inch Slik-Dek bed composed of a 52 lb high-density fiberboard core with phenolic laminate bonded on both sides. It can be flipped to double life. The Seigling E8 special-weave multi-ply polyester belt, with dry lubricant integrated into the material, is exclusive to Precor.
  • Elevation System: Generates up to 1,000 lbs of thrust and operates in compression for reliable operation.
  • Rollers: Steel tapered rollers keep the belt centered to reduce maintenance and noise.
  • Frame: Two-step powder-coating process applies a rust-resistant undercoat and cosmetic topcoat to the steel frame.
  • Emergency Stop: Safety clip attached to the emergency stop switch immediately turns off power and brings the treadmill to a gentle stop. The switch has no magnet to lose and includes a guard to prevent inadvertent activation.
  • Power-Factor Correction: Yes. Reduces energy consumption by up to 30%.
  • Accessories Holder(s): Yes. Drink and accessories holders are positioned for portable music players and personal items.
  • Transport Wheels: Integrated.
  • Touch Heart Rate: Sensors are located on the fixed handlebars.
  • Heart Rate Telemetry: Equipped for chest-strap telemetry reading.
  • SmartRate: Yes. SmartRate displays heart rate and helps the user stay in the selected target zone when age and weight are entered.
  • Reading Rack: Integrated.
  • Speed Range: 0.5–12 mph (0.5–19.3 km/h).
  • Incline Range: 0–15% in 0.5% increments.
  • Motor: IFT-Drive controller with a 4 HP peak-duty AC induction motor; 3-phase, sensorless variable-frequency drive technology.

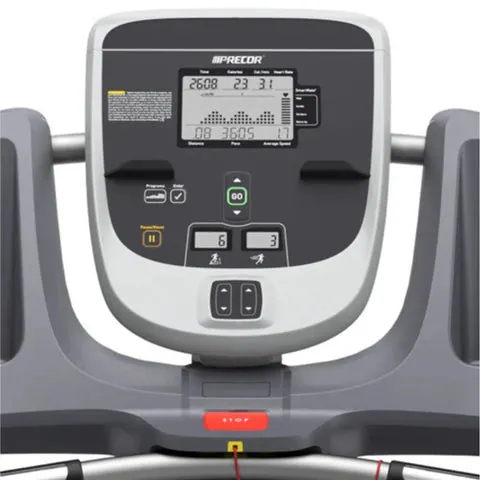

Console Features
  • Console Type: P20 Console.
  • Tap Control: No.
  • Tactile Dome Keys: Yes.
  • QuickStart: Yes.
  • Motion Controls: No.
  • Numeric Keypad: No.
  • Muscle Monitor: No.
  • Console Languages: English, French, German, Spanish.
  • Units Selection: Metric or U.S. Standard.
  • Preset Programs: Manual, Interval 1:1, Interval 1:2, Weight Loss, Basic Heart Rate Control, Cross Country, Hill Climb, Aerobic, Random.
  • Number of Programs: 9.
  • Electronic Readouts: Speed, Incline, Time, Calories, Distance, Heart Rate, Calories/min, Pace, Average Speed, Workout Profile, SmartRate, Workout Summary.
  • Maximum Workout Time: Unlimited.
  • Maximum Pause Time: 120 seconds.

Tech specs

  • Step-up Height (inches/cm): 11.6 inches (29.5 cm)
  • Running Surface (inches/cm): 60" L X 20" W (153 cm x 51 cm)
  • Roller Diameter (inches/cm): 4" (10.2 cm)
  • Handrail Length (inches/cm): 24" (61 cm)
  • Max User Weight: 500 lbs (227 kg)
  • Product Weight: 456 lbs (207 kg)
  • Dimensions: 88" L x 35" W x 64" H (223.5 cm x 89 cm x 162.5 cm)

Warranty

  • 1 Year Parts & Labor Warranty Standard
  • Extended Warranty Options up to 5 Years Parts & Labor Available: See Product Warranty Options for Pricing

The GymGo promise

Every unit we ship is covered: 1 Year Parts & On-Site Labor w/Ext. Warranty Options. Remanufactured equipment is rebuilt to factory spec by our technicians, tested under load and backed by GymGo — extended coverage up to 5 years parts and labor is available at checkout.

Read the full GymGo warranty terms →

Commercial gym equipment ships by palletized freight carrier, not parcel. After you place an order request, a GymGo specialist confirms the exact freight cost and delivery window for your ZIP code before anything is charged.

Choose your delivery level

  • Curbside freight — the carrier delivers to the end of your driveway or loading dock with a liftgate. You move the equipment inside. Lowest cost.
  • Room of choice — the delivery team brings the equipment into the room where it will live, including stairs where accessible.
  • Full assembly & installation — white-glove crews place, assemble, level and test the equipment, then remove all packaging. Recommended for treadmills and multi-station strength lines.

Lead times

Remanufactured units are rebuilt to order: ships from our warehouse in 3-5 weeks + transit time. Transit adds roughly 3–10 business days depending on distance from our Hayward, CA warehouse. We call to schedule a delivery appointment before the truck arrives.

Full shipping & delivery details →
